Garage Door Weathersealing Guide for NJ Homeowners (2026)
A perfectly functioning garage door can still let in cold air, rain, snow, insects, and rodents if the weathersealing is worn, cracked, or missing. In Northern New Jersey — where we deal with everything from January blizzards to August humidity — proper weathersealing is essential, not optional.
Here’s our complete guide to garage door seals, when to replace them, and how each type protects your NJ home.
Why Weathersealing Matters in New Jersey
The NJ Climate Challenge
Northern NJ’s climate is uniquely punishing on garage door seals:
- Winter: 15-25°F lows with driving rain, sleet, and snow that pile against the door bottom
- Spring/Fall: 50-60 freeze-thaw cycles crack rigid rubber seals
- Summer: 85°F+ heat with high humidity that warps and softens cheap vinyl
- Nor’easters: Driving horizontal rain that penetrates side and top gaps
What Happens Without Proper Seals
- Energy loss: Up to 30% of your home’s heat can escape through an unsealed attached garage
- Water intrusion: Standing water under the door causes concrete staining, mold, and rust on stored items
- Pest entry: Mice, rats, and insects need only a ¼-inch gap to enter — a worn bottom seal is an open invitation
- Salt damage: Road salt tracked in by vehicles and blown in by wind corrodes tools, machinery, and the garage floor
The 3 Critical Seal Zones
1. Bottom Seal (Most Important)

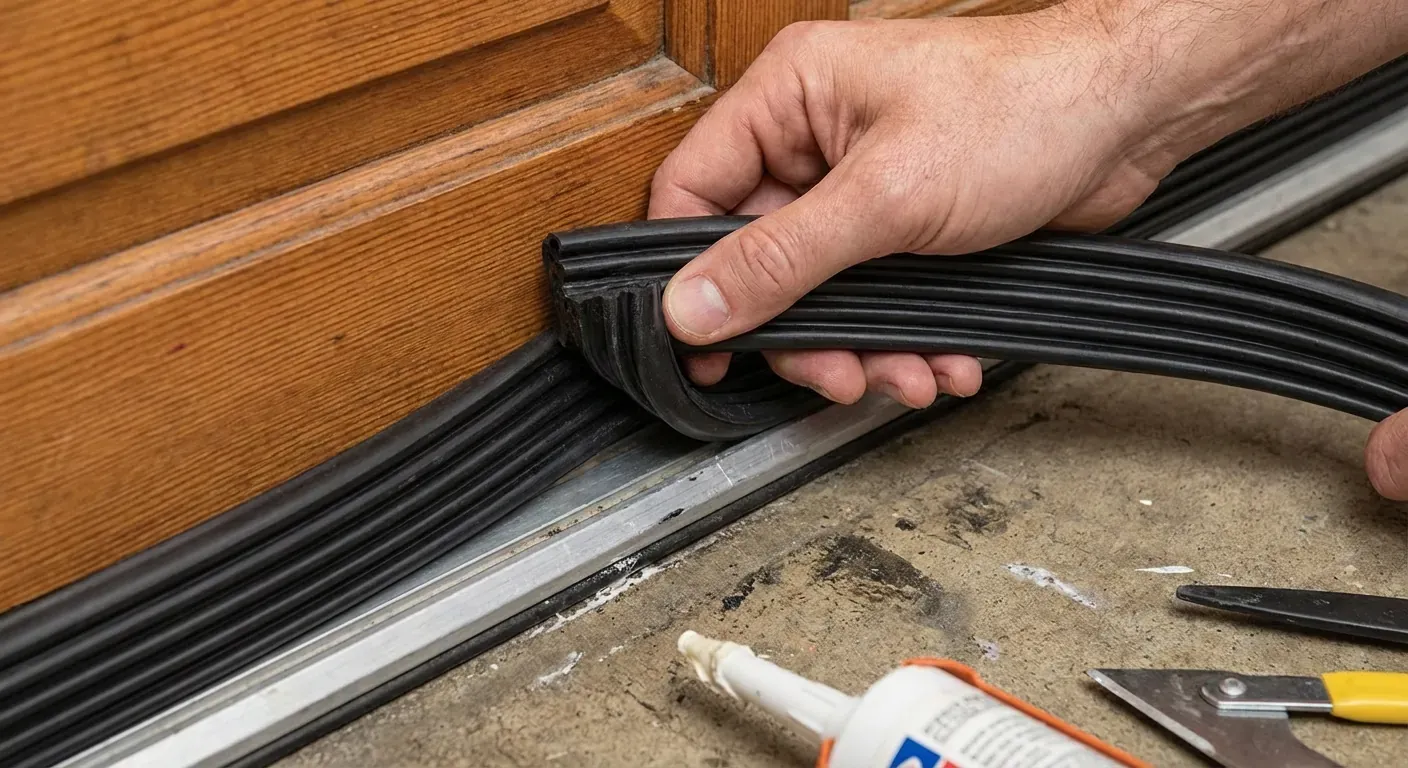

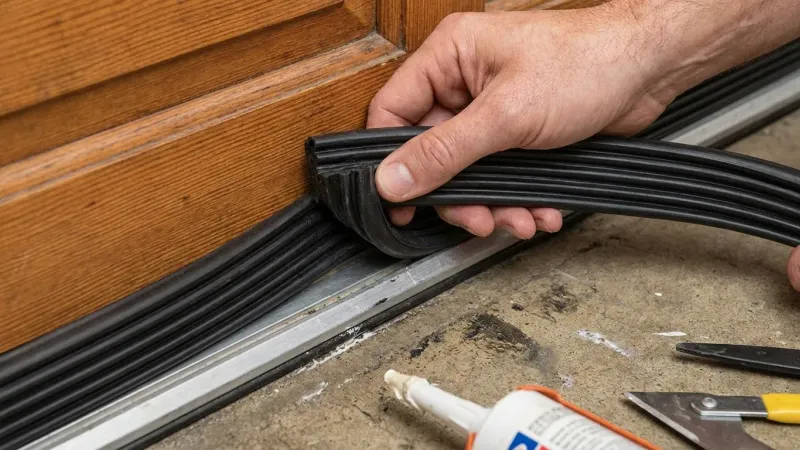

The bottom seal (also called an astragal or retainer seal) is the rubber or vinyl strip running along the bottom edge of the door. It compresses against the garage floor when the door closes.
Signs it needs replacing:
- Visible cracks, tears, or chunks missing
- Light visible under the closed door
- Water puddles inside after rain
- Cold drafts at floor level in winter
- You can hear wind whistling underneath
Types of bottom seals:
- T-style: Slides into a retainer channel. Most common and easiest to replace
- Bulb-style: Round profile for uneven concrete floors
- Beaded-style: Wraps around the bottom panel edge. Common on older doors
Our recommendation for NJ: We install dual-durometer T-style seals with a rigid top (for track retention) and soft bottom (for maximum floor compression). These handle NJ’s temperature swings without cracking.
2. Side and Top Weatherstripping
The weatherstripping along the sides and top of the door frame creates a continuous perimeter seal. This foam, vinyl, or rubber strip compresses against the door panels when closed.
Signs it needs replacing:
- Visible daylight around the door edges when closed
- Side seals are peeling away from the door frame
- Top seal is compressed flat and no longer springs back
Our recommendation for NJ: We use closed-cell vinyl weatherstripping — it doesn’t absorb water (critical for NJ humidity), maintains flexibility in cold temperatures, and lasts 5-8 years before needing replacement.
3. Threshold Seal (Floor Seal)
A threshold seal is a rubber strip bonded directly to the garage floor in front of the door. When the door closes, the bottom seal sits on top of the threshold seal, creating a double-barrier against water and air.
When you need one:
- Your garage floor slopes toward the door (water flows in during rain)
- Your driveway drains toward the garage
- You’ve had flooding or standing water issues
- The concrete under the door is cracked or uneven, meaning the bottom seal can’t make full contact
Our recommendation for NJ: For any home in a flood-prone area (Hoboken, Jersey City waterfront, Passaic River neighborhoods), a threshold seal is essential. We adhesive-bond commercial-grade EPDM threshold seals that withstand vehicle traffic and NJ freeze-thaw cycles.
DIY vs. Professional Installation
What Homeowners Can Do
- Bottom seal replacement: If your door has a retainer channel, you can slide in a new T-style seal yourself. It takes about 30 minutes and requires no tools beyond a utility knife
- Threshold seal: Clean the concrete, apply the adhesive, press the seal into place. Allow 24 hours to cure
When to Call Ez2Fix
- Side and top weatherstripping: Requires removing trim, cutting to fit, and securing with fasteners. Improper installation leaves gaps
- Bottom seal on older doors: If your door uses a beaded or wrap-around seal, it often requires removing the bottom panel to replace
- Full perimeter resealing: We do this as part of our Preventive Maintenance Tune-Up — we replace all worn seals, lubricate tracks and hinges, tighten hardware, and realign safety sensors in one visit
How Long Do Garage Door Seals Last in NJ?
| Seal Type | Expected Lifespan (NJ Climate) | Replace When |
|---|---|---|
| Bottom seal (T-style) | 3-5 years | Cracked, brittle, or light visible underneath |
| Side weatherstripping | 5-8 years | Peeling, compressed flat, or daylight visible |
| Top seal | 5-8 years | Compressed flat, no longer springs back |
| Threshold seal | 7-10 years | Cracked or no longer adhered to concrete |
Complete Weathersealing as Part of Maintenance
We include weatherseal inspection in every service call. If your seals show wear during a spring repair, opener installation, or tune-up, we’ll point it out and offer to replace them during the same visit — saving you a second service call.
