Torsion vs. Extension Springs: The Definitive Guide for Northern New Jersey Homeowners
If your garage door just slammed shut with a concussive bang that shook your entire house, or if it suddenly feels like you’re trying to manually deadlift a Buick, you are likely the victim of a snapped garage door spring.
When replacing or upgrading this critical infrastructure, homeowner research quickly hits a technical wall: Torsion Springs versus Extension Springs. Understanding this fundamental architectural choice isn’t just about saving a few hundred dollars on your next service call—it dictates the safety profile of your garage, the wear and tear on your electric opener, and how your door will survive the extreme weather oscillations inherent to Northern New Jersey.
At Ez2Fix, our licensed technicians navigate everything from the sprawling properties of Morris County to the historic, space-constrained carriage houses of Montclair and Newark. We’ve seen the aftermath of improperly calibrated extension springs, and we’ve engineered hundreds of high-cycle torsion conversions.
This is the most comprehensive guide available on garage door springs, engineered specifically for the housing stock and climate of the Northeast.
The Physics of Tension: Why Springs Matter At All
A startling number of homeowners believe the electric garage door opener (the motor on the ceiling) does the heavy lifting. This is a dangerous misconception.
A standard double-car steel garage door (16x7 feet) weighs anywhere from 150 to 250 pounds. A custom wooden carriage-house door—frequently seen in Bergen County neighborhoods like Ridgewood and Saddle River—can weigh 400 to 500 pounds.
The Role of Counterbalance
Your motorized opener is essentially just a traffic cop; it tells the door when to move and guides it along the rail. The actual raw lifting power is generated entirely by the counterbalance system (your springs).
Springs store latent kinetic energy. As a door lowers, it applies its dead weight to the springs, forcing them to either twist (torsion) or stretch (extension). When the door is fully closed, the springs are under their maximum possible stress, storing enough energy to instantly counterbalance the door’s weight when you hit the button.
A perfectly balanced door, powered entirely by calibrated springs, should require no more than 10 to 15 pounds of human force to lift manually. If the springs fail, the entire 300-pound load is transferred onto the gears of your electric opener—usually stripping the nylon sprockets and burning out the logic board in seconds.
Anatomy of Torsion Springs
What Are They?

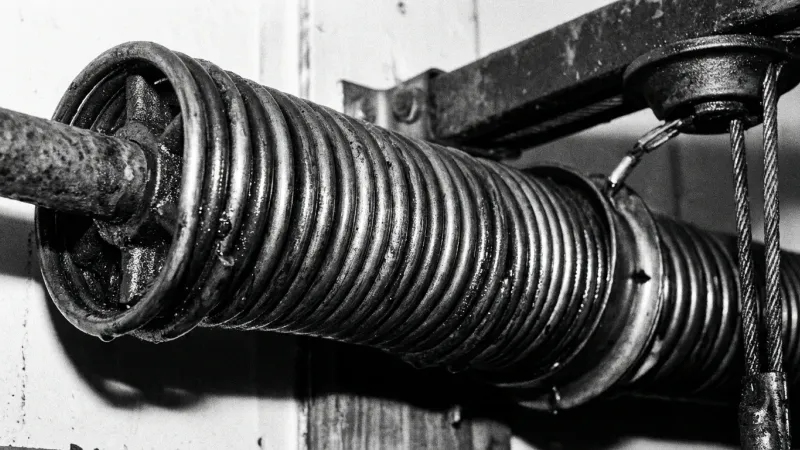

Torsion springs are heavy, tightly wound steel coils mounted horizontally on a metal shaft (the torsion tube) directly above the center of the closed garage door. Attached to the ends of this tube are aluminum drums, which spool aircraft-grade steel lifting cables attached to the bottom corners of your garage door.
How They Work (The IPPT Metric)
When the door closes, the cables pull on the drums, forcing the attached tube to rotate, which winds the torsion springs tighter and tighter. This builds rotational torque. The amount of force a torsion spring can generate is measured in Inch-Pounds Per Turn (IPPT).
When the door opens, the springs furiously unwind, translating that torque back through the tube, into the drums, and pulling the cables upward.
The Visual Identifiers
- Location: Anchored to a center bearing bracket directly above the top panel of your closed door.
- Appearance: One or two thick coils surrounding a solid metal or hollow tubular bar.
- Hardware: Features cast-iron winding cones on the ends with pre-drilled holes for specialized winding bars.
Anatomy of Extension Springs
What Are They?
Extension springs operate on linear elasticity rather than rotational torque. They are long, stretched-out coils that run parallel to the horizontal ceiling tracks on either side of the garage door.
How They Work
Instead of spooling a cable on a drum, extension springs use a pulley system. When the door closes, the pulling force of the door stretches the springs back toward the rear of the garage. When the door opens, the springs contract, pulling the door up the track.
The Visual Identifiers
- Location: Hovering just above the horizontal tracks near your garage ceiling, stretching from the door opening toward the rear.
- Appearance: Long, thin coils with loops or clips at the ends.
- Hardware: Accompanied by small metal pulleys and safety cables threaded through their hollow centers.
Head-to-Head Architectural Comparison
1. The Safety Profile (Torsion Wins Decisively)
This is the single most critical differentiator. When a spring fails, it releases hundreds of pounds of stored energy in a fraction of a second.
- Torsion Failure: Because the spring is wrapped around a solid steel shaft, when a torsion spring snaps, it produces a deafening “BANG,” but the metal coil remains safely contained on the tube.
- Extension Failure: An extension spring acts precisely like a giant rubber band. If it snaps under tension without a safety cable, the steel coil becomes a dangerous projectile, capable of smashing through drywall, shattering windshields, or causing severe injuries.
The New Jersey Code Warning: Modern building codes require “safety cables” to be threaded through all extension springs. However, thousands of pre-1990 homes across Newark, Paterson, and Jersey City still lack these life-saving cables. At Ez2Fix, we refuse to service an extension spring system without installing safety safety cables.
2. Lifespan and Cycle Ratings
Garage door springs don’t age based on years; they age based on “cycles.” One complete opening and closing sequence equals one cycle. A family with two cars that uses the garage as their primary front door easily consumes 4–6 cycles per day.
- Extension Springs: Typically rated for 5,000 to 10,000 cycles. With average usage, you can expect 5 to 7 years of functionality. The physical stretching of the metal creates micro-fractures much faster than twisting torque.
- Torsion Springs: Standard industry torsion springs are rated for a baseline of 10,000 to 15,000 cycles.
- The High-Cycle Upgrade: Torsion architecture allows for “high-cycle” springs—thicker gauge wire with larger internal diameters. Ez2Fix offers specialized high-cycle torsion conversions rated for 30,000 to 50,000 cycles. For the average Northern NJ homeowner, a 50k spring represents 15 to 20+ years of maintenance-free lifting.
3. Operational Smoothness and Track Wear
- Extension Dynamics: Extension springs operate independently of one another. As they age, one spring often loses tension faster than the other. This creates a severe pulling imbalance. The door will “walk” up the track, shimmying left to right, scrubbing the nylon rollers against the steel rails and accelerating track destruction.
- Torsion Dynamics: Torsion springs are centralized on a single unified shaft. Even if you have two springs, their force is combined on the torsion tube and distributed perfectly equally to both lifting drums simultaneously. The door rises level, extending the life of your rollers, hinges, and the opener motor.
4. Low Headroom Constraints in Historic NJ Homes
If torsion is so superior, why do extension springs exist? Architecture.
A standard upfront torsion system requires 12 to 15 inches of absolute vertical “headroom” (the space between the top of the highest garage door panel and the actual ceiling).
In historical New Jersey neighborhoods—especially Victorian-era rowhomes in Hoboken, mid-century starter homes in Hackensack, or early 1900s detached carriage houses in Montclair—the garage roof is often built directly flush against the door header. In many of these structures, you might only possess 4 to 6 inches of operational clearance.
In these extreme low-headroom environments, builders historically defaulted to extension springs because they lay horizontally flat alongside the ceiling tracks, demanding almost zero vertical space above the header.
Modern Torsion Solutions (The High-Lift & Rear-Mount Conversions): Today, property owners in low-clearance environments are no longer forced to accept dangerous extension springs. Ez2Fix routinely engineers two specific solutions for historic NJ properties:
- Double-Track Low Headroom Configuration: We install a specialized secondary set of tracks. The top section of the door rides exclusively on the upper track, instantly decreasing the required headroom to just 4.5 inches while preserving space for a standard front-mount torsion bar.
- Rear-Mount Torsion: In extraordinarily tight garages (common in Newark’s Ironbound district), we relocate the entire torsion tube, drums, and springs to the absolute rear of the garage tracks. The cables pull the door backward from behind, entirely bypassing the header space limitation while delivering the safe, unified torque of a torsion-class system.
5. The Mathematics of Upgrading: IPPT and Cycle Engineering
Replacing a spring is not about simply grabbing a coil off a shelf. It requires exact, rigid mathematical calculation known as IPPT (Inch-Pounds Per Turn).
When Ez2Fix technicians arrive at your home, they do not guess. They weigh the dead load of your un-sprung door using an industrial scale. They then calculate the exact IPPT required to counterbalance that load.
Why the Math Matters
If a 200-pound insulated steel door requires 35 IPPT to balance perfectly, and a DIYer accidentally installs a spring generating 42 IPPT, the door becomes completely “hot.” It will rocket upward uncontrollably, risking damage to the opener motor and potentially tearing the track off the ceiling. Conversely, an undersized spring (ex: 28 IPPT) creates a “dead” door, forcing the electric motor to drag 40-50 pounds of dead weight every cycle, significantly shortening the motor’s lifespan.
Engineering High-Cycle Conversions
The true advantage of a torsion system lies in its scalability. A standard builder-grade spring uses.207 gauge wire and is rated for roughly 10,000 cycles. By executing advanced IPPT math, an Ez2Fix technician can increase the wire gauge (e.g., to.250 or.262) and lengthen the overall coil.
This generates the exact same lifting torque but distributes the physical stress across a vastly larger surface area of steel. The result? A High-Cycle Torsion Spring. Instead of failing in 5 years at 10,000 cycles, the upgraded spring will easily exceed 50,000 to 80,000 cycles, effectively lasting the entire lifetime of your home.
The Northern NJ Climate Factor: Salt, Cold, and Embrittlement
Springs are made of high-carbon steel. Northern New Jersey presents a uniquely hostile environment for this class of metal.
Extreme Cold Fatigue
During late January, temperatures frequently plummet into the single digits. Extreme cold chemically alters carbon steel, causing “embrittlement” (loss of ductility). The metal becomes rigid. When you push your opener button at 6:00 AM on a 10°F morning, the electric motor forces that frozen, rigid coil to instantly endure 200 pounds of torque.
This is why local garage door companies experience a massive surge in broken spring calls immediately following the first deep freeze of the season.
- Torsion Advantage: Because torsion generates dispersed rotational torque, it is marginally more resistant to cold-snap embrittlement than the violent linear stretching required of an extension spring.
Maritime and Road Salt Corrosion
If you live near the Hackensack River, Newark Bay, or commute heavily on the heavily salted lanes of I-80 or the Garden State Parkway, your garage is filled with corrosive vapor.
The salt mist settles on the microscopic pores of your springs, eating away the factory galvanization and inducing deep-seated rust. Rust friction significantly reduces the cycle life of a spring.
- Actionable Advice: Regardless of whether you have torsion or extension, wiping the coils down with a rag and applying a heavy coat of specialized garage-door silicone spray twice a year (Fall and Spring) seals the metal against New Jersey’s corrosive humidity.
ROI Breakdown: The Economics of a Torsion Conversion
If your home currently utilizes extension springs, and one of them snaps, you face a critical junction: Do you replace the broken extension spring with another extension spring, or do you upgrade your property to a full torsion system?
A Complete Torsion Conversion involves the removal of all old pulleys, frayed safety cables, and track-mounted stretching coils. We then install a heavy-duty steel center bearing bracket against your header, mount leveling bearing plates on the flags, run a pristine 1-inch thick steel torsion tube across the width, and attach aircraft-grade lifting drums and brand-new, IPPT-calibrated torsion springs.
10-Year Financial Impact Study
Let’s analyze the true cost of ownership over a 10-year span for an average family in Paramus cycling their door 6 times per day (approx. 2,190 cycles annually, or 21,900 cycles over the decade).
Scenario A: Sticking with Extension Springs
- Year 1: Left extension spring snaps. Cost of replacing both springs + labor (approx. $250 - $400).
- Year 4: The erratic side-to-side jerking of the extension system causes the right-side lifting cable to fray and jump the pulley. Emergency service call (approx. $150 - $250).
- Year 5: The 10,000-cycle threshold is reached. Right extension spring snaps. Replacement cost ($250 - $400).
- Year 8: The unequilibrated tension finally strips the nylon gear assembly inside your Chamberlain electric opener. Full motor replacement required (approx. $400 - $650).
- Total 10-Year Estimated Outlay: $1,050 to $1,700+ in staggered repairs, not counting the massive inconvenience of repeatedly being trapped in the garage.
Scenario B: The Ez2Fix High-Cycle Torsion Conversion
- Day 1: Complete structural conversion to a 50,000-high-cycle torsion system (approx. $450 - $800 depending on door weight and track modifications).
- Year 1 through Year 10: Zero spring breaks. Zero cable fraying (due to direct-drum winding). Zero stripped opener gears (due to perfectly balanced, unified lifting torque).
- Total 10-Year Estimated Outlay: $450 to $800.
While a torsion conversion carries a higher initial invoice, the mathematics prove it pays for itself almost twice over within a single decade. It reduces the sheer volume of emergency service calls related to derailed doors, frayed cables, and burned-out motors.
5 Warning Signs of Imminent Spring Failure
Don’t wait for your car to be trapped in the garage. Watch for these diagnostic symptoms:
- “Pancaking” (The Heavy Door Test): Disconnect your opener and lift the door by hand. If it feels heavy or slams to the ground, your springs have lost their tension calibration and are operating on borrowed time.
- Visible Elongation: On extension springs, look closely at the coils. If you can see light pouring through gaps in the coil while the door is open (the spring should be completely compressed and flush), the metal has irrevocably stretched.
- The Squealing Grind: While a lack of lubrication causes squeaking, a distinct, deep metallic scraping sound as the door moves usually indicates complete torsion imbalance or failing extension pulleys.
- Crooked Operation: If one side of the door reaches the ground an inch before the other, the extension springs are pulling dynamically uneven loads.
- Rust Flaking: Surface rust is normal. If the spring is heavily flaking and leaving piles of orange dust on the floor below, the structural integrity of the steel is compromised.
Frequently Asked Questions (NJ Homeowners Edition)
Q: Can I replace a broken torsion spring myself? A: Absolute NO. Replacing torsion springs requires specialized winding bars, locking vice grips, and exact knowledge of quarter-turn tension math. Winding a spring by hand stores lethal torque. Dozens of catastrophic hand and facial injuries occur every year from DIY spring installations slipping. Only hire a licensed, insured professional.
Q: If one spring breaks, do I really need to replace both? A: Yes. Both springs were installed on the exact same day, lift the exact same weight, and endure the exact same cycles. If the left spring fatigued and shattered on a Tuesday, the right spring will mathematically fail within the next few weeks. Replacing only one guarantees a second service-call fee shortly after.
Q: Why does my door drop rapidly the last 6 inches? A: This indicates the springs were calibrated with the incorrect wire gauge or IPPT, meaning they run out of lifting torque before the door completes its cycle. The resulting heavy drop will eventually crush the bottom panel weatherstripping.
Q: How do I know what size torsion spring I need? A: Springs are not “one size fits all.” A technician must weigh your raw door layout, measure the existing spring’s wire gauge down to the millimeter using a micrometer, measure the internal diameter of the coil, and calculate the overall length. Putting the wrong spring on a door results in a “hot” door (shoots up uncontrollably) or a “dead” door (too heavy to lift).
Securing Your Northern NJ Property with Ez2Fix
The engineering driving your garage door is simple, but the forces involved are. Upgrading from the erratic pulling of extension springs to the smooth, centralized torque of a high-cycle torsion system is the single most valuable investment you can make in your garage’s infrastructure.
At Ez2Fix, we carry a full inventory of galvanized, high-cycle torsion springs rated for the heavy usage demands of Northern New Jersey households. Whether you are dealing with an emergency blowout or looking to proactively upgrade before winter hits, our licensed technicians deliver precise, mathematically verified calibrations.
Experience the difference of a perfectly balanced door.
